HVAC Equipment

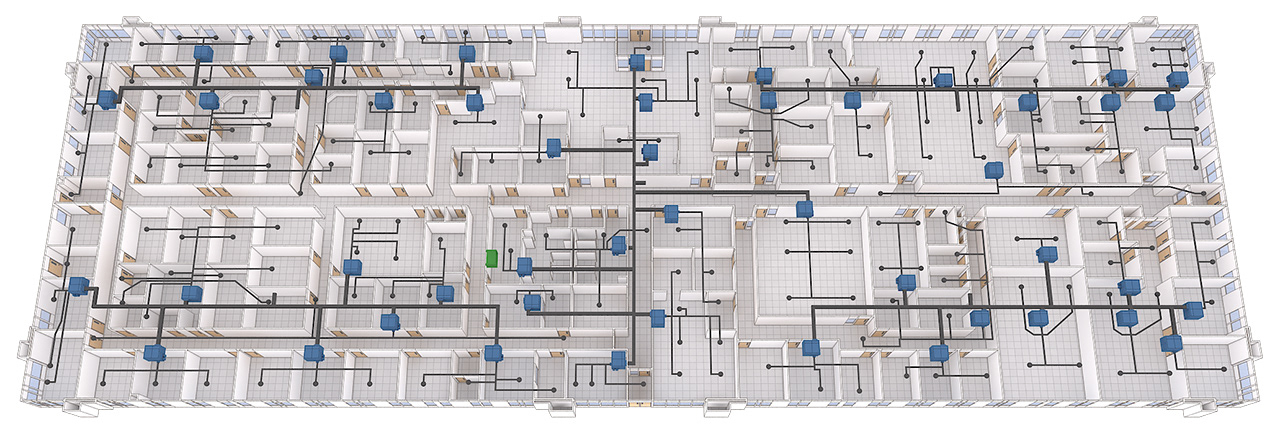

Thick black lines represent duct between rooftop units and individual air handling units.
Thin black lines represent duct from air handling units to diffusers, which are represented by spheres.
Small green units are self contained AC units
The top image is a complete floor level from a top-down view used as a selection menu within software.
The following A and B images would each be full-frame within HVAC control software, without HVAC representation

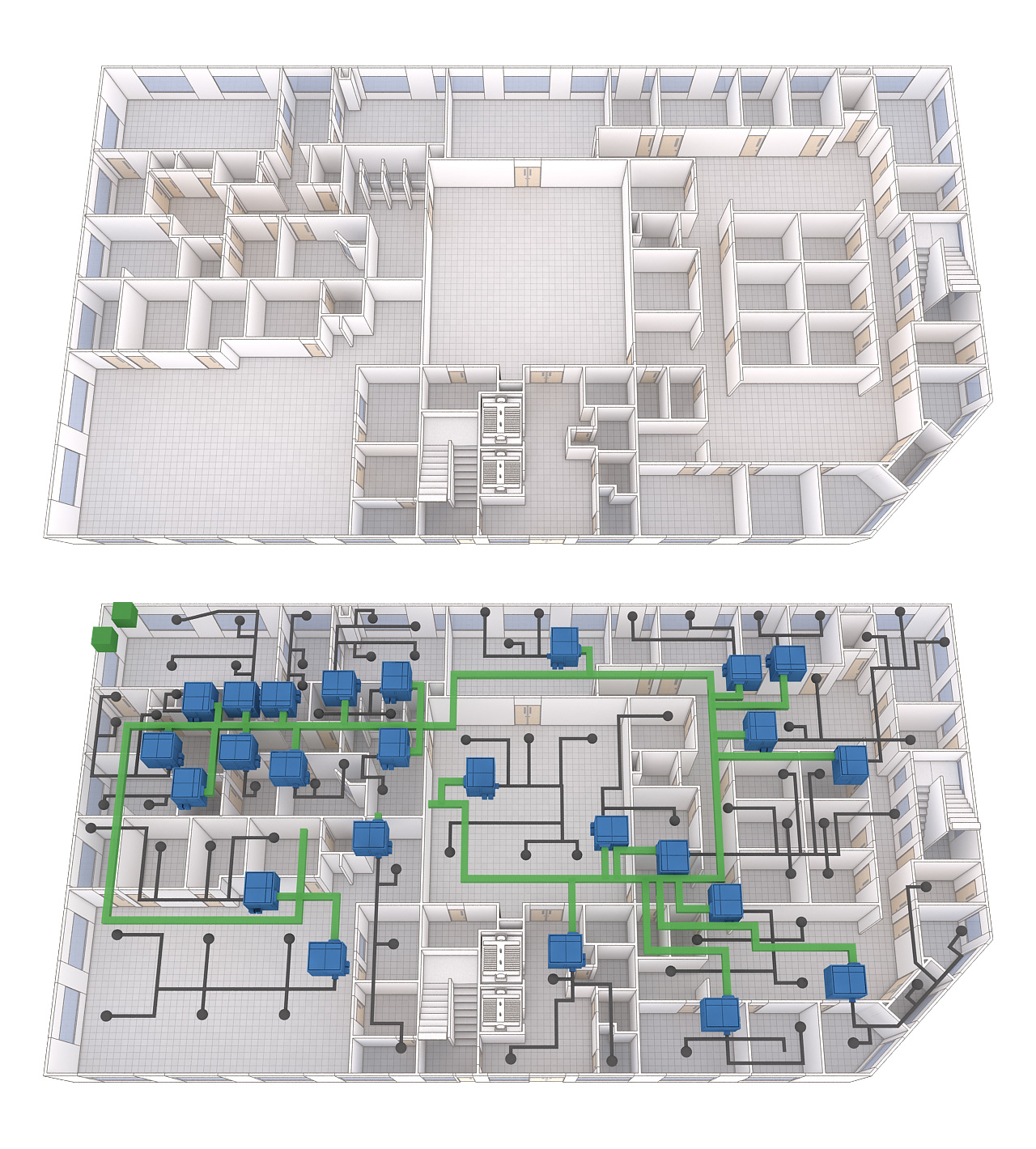

Floor plan without and with HVAC representation
HVAC Equipment
Thick green lines represent duct between rooftop units and individual air handling units.
Thin black lines represent duct from air handling units to diffusers, which are represented by spheres.
Small green units are self contained AC units
The top image is a complete floor level from a top-down view used as a selection menu within software.

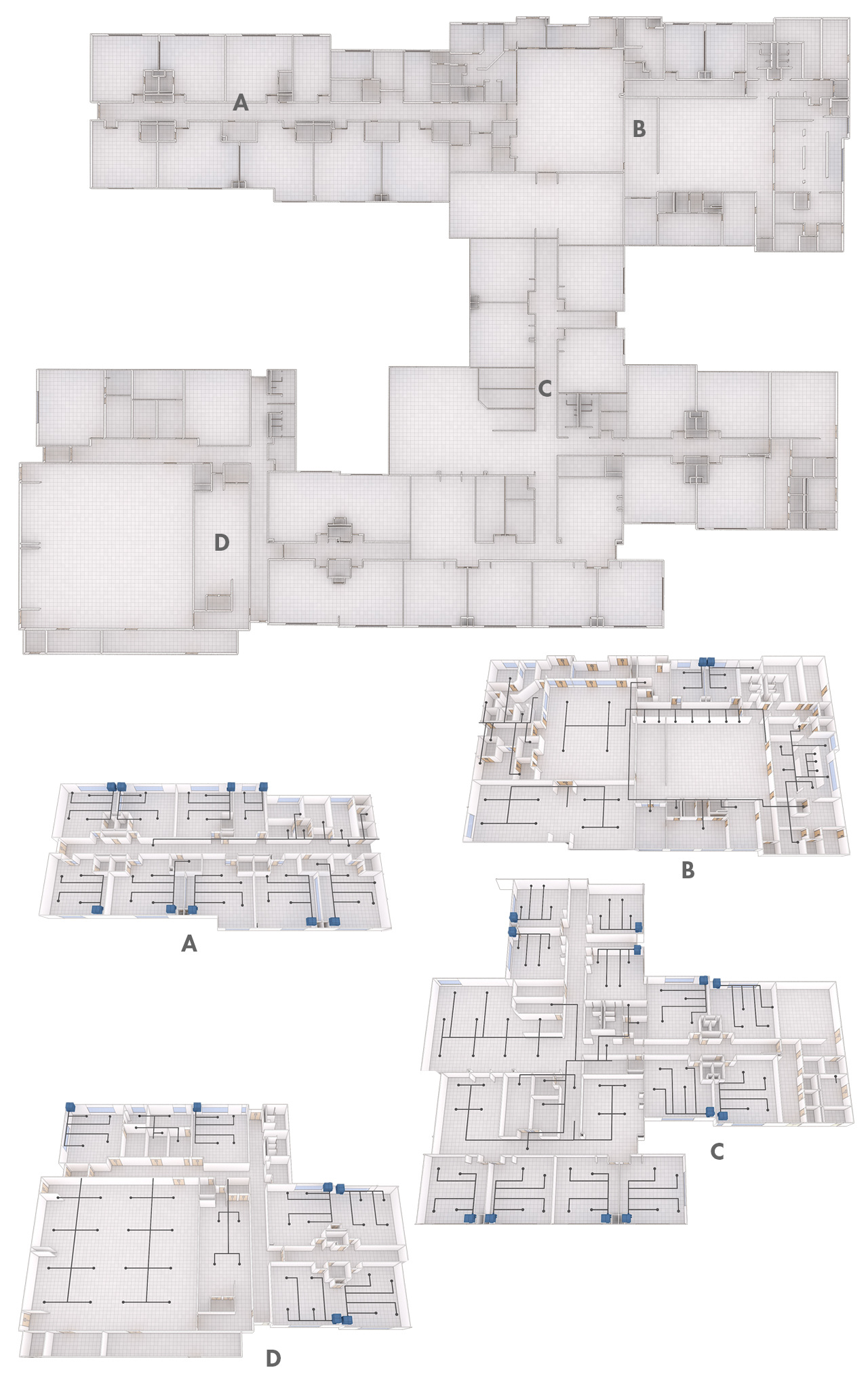

The following A-D images would each be full-frame within HVAC control software, with HVAC representation

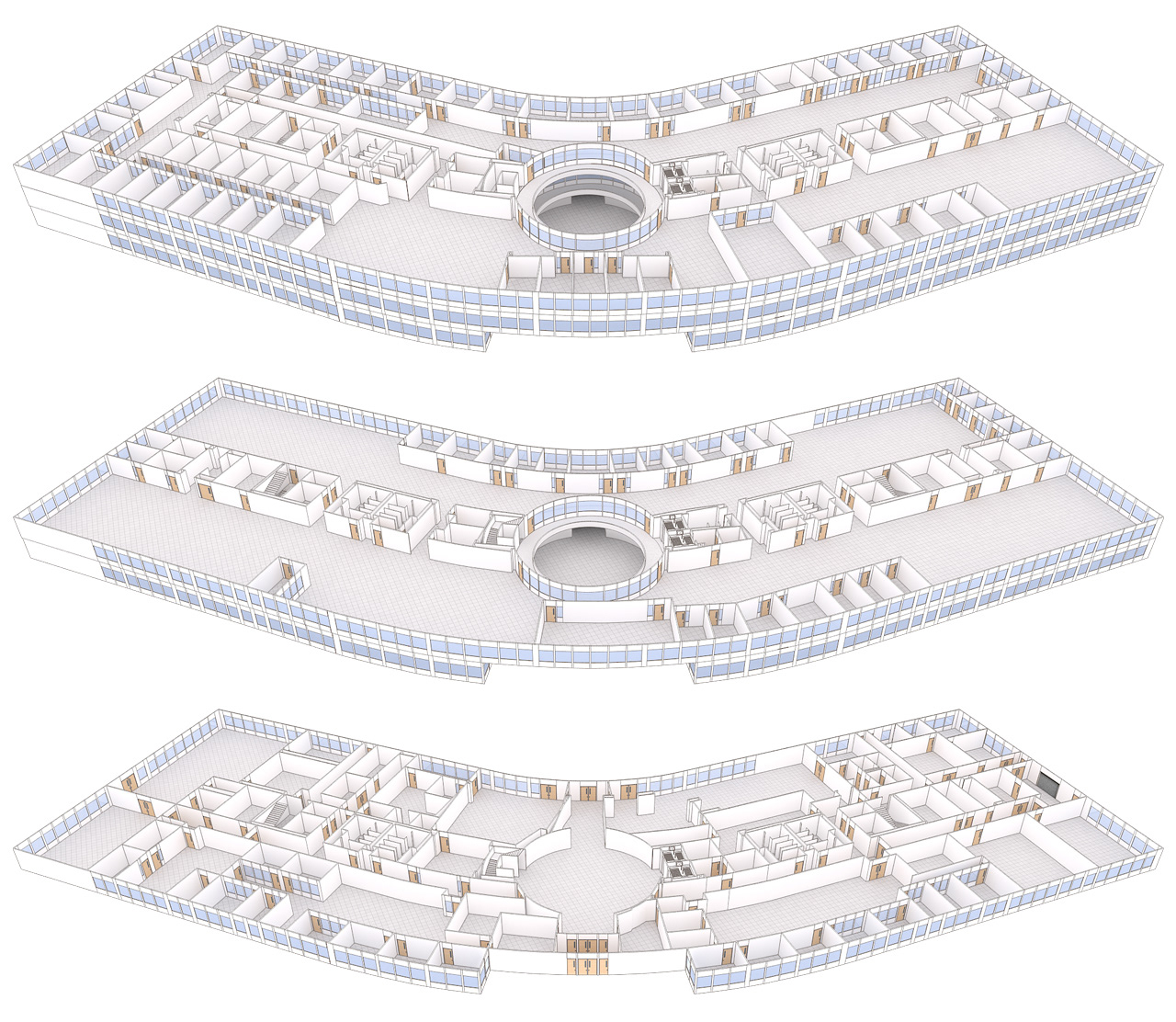

Three floors without HVAC representation in exploded view
